Arteriofix®

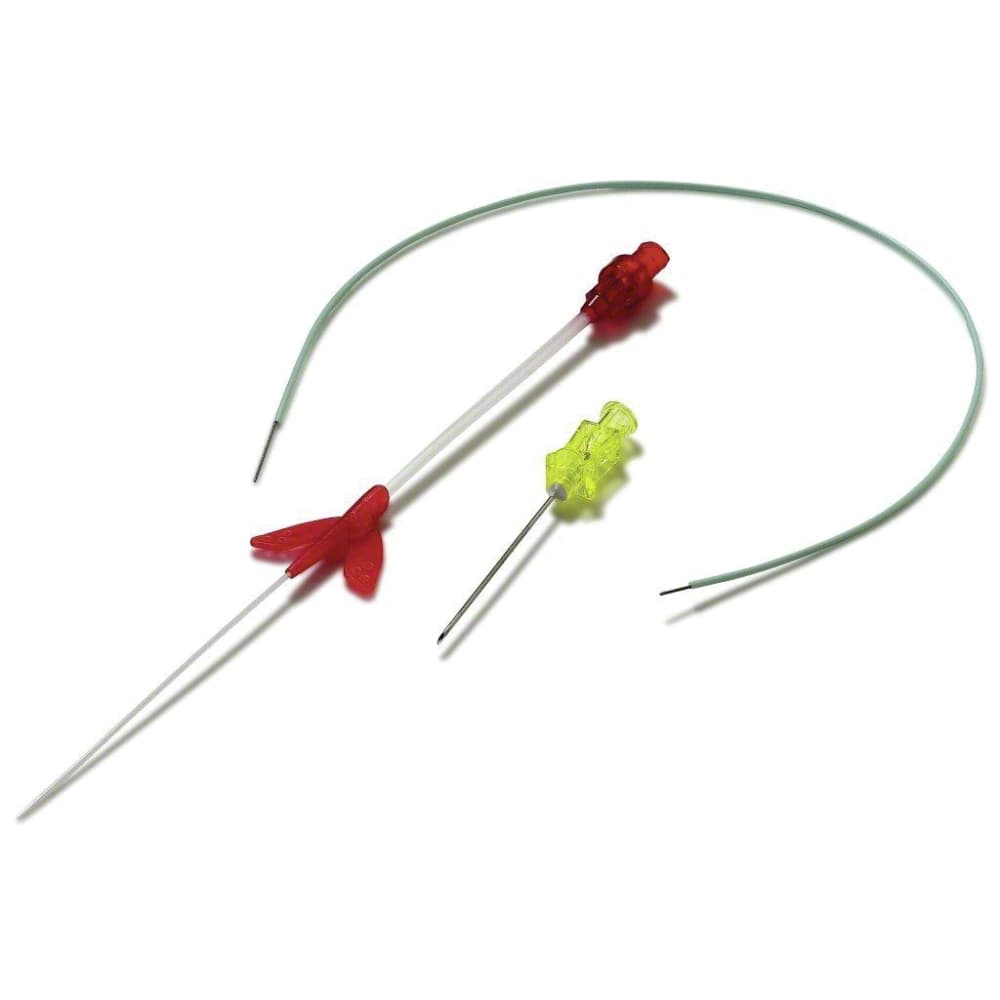

Set de cateterización arterial para la monitorización invasiva de la presión arterial y toma de muestras de sangre mediante la técnica de Seldinger.
Cánula de introducción de acero inoxidable
- Transición cónica suave del extremo para una fácil inserción del alambre-guía.
- Diseño integrado, que proporciona una transición suave del alambre-guía a la aguja y de la aguja al catéter para asegurar un trauma mínimo en el lugar de punción.
- ConectorLuer-Lock.
Catéter de FEP
- Buenas propiedades físicas y mecánicas del material para la transmisión de presión.
- Excelente compatibilidadcon tejidos y sangre.
- Superficie lisa que previene la trombogénesis.
- Punta especial para una fácil inserción.
- Los catéteres FEP poseen buenas características de deslizamiento durante la inserción.
- Alas de fijación en el extremo proximal.
- ConectoresLuer lock con códigos de color.
Alambre-guía de acero inoxidable
- Punta recta flexible.
- Diseñado conforme a los diferentes diámetros internos de los catéteres.
Arteriofix® V
Esta nueva versión de Arteriofix® convence por susnovedosas y excelentes características y por los componentes establecidos.
Capilar
- De FEP.
- Excelente compatibilidad con tejidos y sangre.
- Superficie lisaque previenela trombogénesis.
- Punta especial para facilitar la inserción.
- Excelentes características de deslizamiento durante la inserción.
Alas de fijación
- Alasde PUR.
- Alas suaves que se adaptan fácilmente a la piel.
- Tres orificios de sutura.
- Transición continua y fluida entre las alas y capilar.
Tubo de conexión
- Tubo dePUR de7 cm de largo.
- Distancia entre el lugar de la punción y la zona de conexión.
- Alivio de tensión en el sitio de punción durante la conexión.
Válvula
- Evita el reflujo de sangre y facilita el manejo.
- Proporciona una alta estanqueidad.
- No afecta a los resultados de medición de la presión.
Cánula de introducción de acero inoxidable
- Transición cónica suave del extremo para una fácil inserción del alambre-guía.
Diseño integrado, que proporciona una transición suave del alambre-guía a la aguja y de la aguja al catéter para asegurar un trauma mínimo en el lugar de punción. - Conexión Luer- Lock.
Alambre-guía de acero inoxidable
- Punta recta flexible.
- Diseñado conforme a los diferentes diámetros internos de los catéteres.
