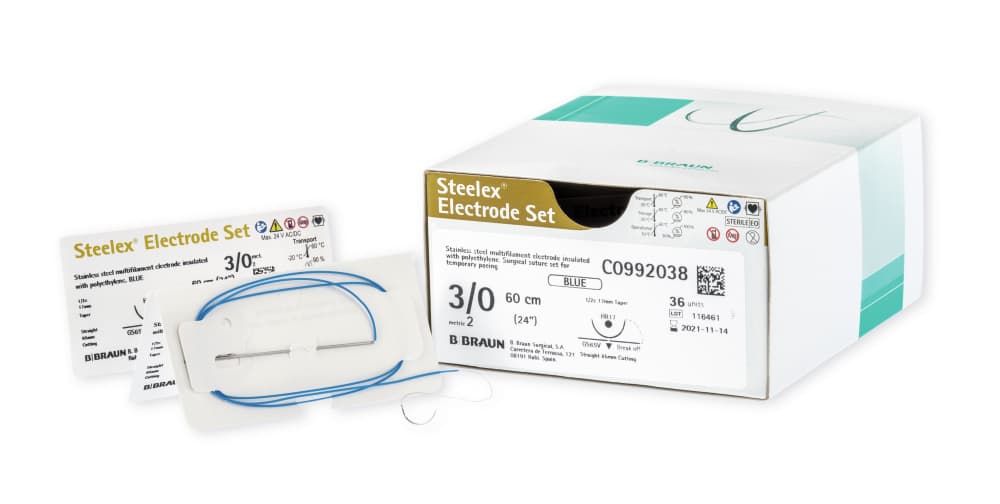

Electrode Set es un electrodo unipolar temporal para marcapasos indicado para el tratamiento de arritmias después de la cirugía a corazón abierto.

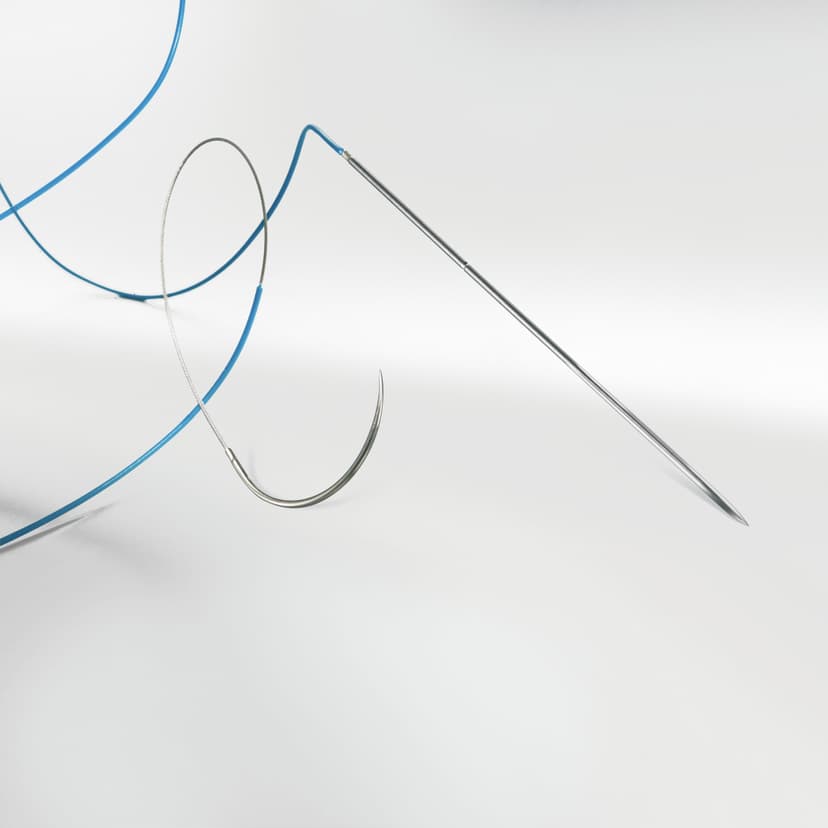

Está compuesto por un hilo de acero inoxidable multifilar torcido, recubierto parcialmente por polietileno, montado con una aguja recta de punta triangular tipo “break-off” en un extremo y con una aguja de medio círculo de punta cilíndrica o punta trócar en el otro extremo.
